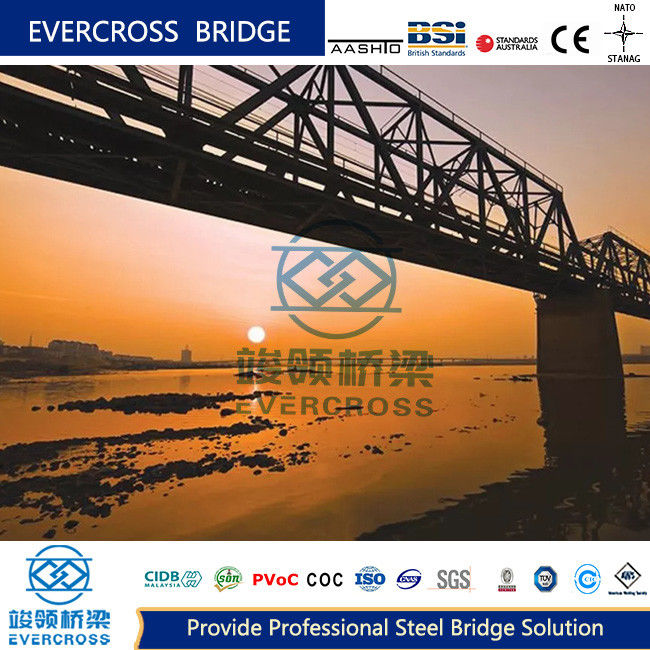

ISO Steel Truss Bridge

Steel Truss Bridge Description:

Light Weight Steel Truss Bridge Hot Dip Galvanized ISO


Introduction of the steel truss bridge:

The steel truss bridge is a structural system between beams and arches. It is a structure in which a bent upper beam structure and a pressure-bearing lower column are integrated together. Due to the rigid connection between the beam and the column, the beam is unloaded due to the flexural rigidity of the column. The entire system is a compression-bending structure as well as a thrust structure.


Truss Design: The truss design of a steel truss bridge consists of a series of triangular elements that form the main load-bearing structure. The trusses are typically made of steel members, such as I-beams or box girders, which are connected at the joints using rivets, bolts, or welding. The triangular shape of the trusses distributes the loads efficiently and provides stability to the bridge.


According to the different position of the bridge floor, it is divided into upper bearing steel truss bridge that the bridge floor is located in the upper part of the main truss and lower bearing steel truss bridge which the bridge floor is located in the lower part of the main truss.

The structure composition of rigid truss beam bridge: Main girder, Bracing, Bridge deck system, Bridge floor




(1) Main girder


It is the main load-bearing structure and bears vertical loads.

Nodes are divided into large nodes and small nodes.

Pitch refers to the distance between nodes.

The main truss is composed of upper chord, lower chord and belly rod. The belly bar is divided into diagonal bar and vertical bar.

(2) Bracing

1. Classification: longitudinal connection and horizontal connection.
2. Function: Connect the main truss, make the bridge span structure become a stable space structure that can withstand a variety of lateral loads.
3. The longitudinal connection system is divided into upper horizontal longitudinal connection system and lower horizontal longitudinal connection system. The main function is to withstand the transverse horizontal load, transverse wind, lateral rocking force and centrifugal force acting on the bridge span structure. In addition, the transverse support chord, reducing its free length outside the plane.
4. The transverse connection is divided into bridge frame and crosslink. The main function is to increase the torsional stiffness of steel girder. Properly adjust the uneven force of the two main stringer or two longitudinal links.


Warren Truss: The Warren truss is another popular type of steel truss bridge. It consists of diagonals that alternate in direction, forming a zigzag pattern. The vertical members provide additional support.



(3) Bridge deck system

1. Composition: the longitudinal beam, beam and the connection between the longitudinal beam.

2. Way of force transmission: the load first acts on the longitudinal beam, and then from the longitudinal beam to the beam, and then from the beam to the main truss.

(4) Bridge deck

The bridge deck is the part for vehicles and pedestrians to walk on. The form of the deck is similar to that of steel beam Bridges and combined beam bridges.

Geometric characteristics of the main truss:

Economy, simple structure, conducive to standardization and easy to manufacture and install.


The main truss categories:

Triangular truss: Triangular truss structure is simple, the design is fixed, easy to install and manufacture.



Diagonal bar truss:

Many bar specifications.
Many specifications and large internal force of the vertical rod.
All are large nodes.



The K-shaped truss:

The shear force of the same node is borne by two diagonal rods, which are small and short in section.
The bar has many specifications, many nodes, short intersections, and many crossbar beams and connections. For small and medium-sized spans, the structure is complex.
For large spans, the rods are short, light and suitable for mounting and dismounting Bridges.



Double-vented bar truss:

The same internode shear force is borne by two diagonal rods, which are small and short in section.
It is used for large span, short compression inclined rod, which is favorable for buckling stability.
The small section of the inclined rod makes the number of connecting pins on the joint plate less, and it is easy to arrange the joint.



Application of the steel truss bridge:

Highway and Road Bridges: Steel truss bridges are frequently used in the construction of highway and road bridges.

Pedestrian Bridges: Steel truss bridges are often employed as pedestrian bridges, providing safe and convenient crossings for pedestrians and cyclists.

Railroad Bridges: Steel truss bridges are well-suited for railway applications, including both standard gauge and light rail systems.


Advantages of the steel truss bridge:
Beautiful building appearance
Good seismic performance
Wide application
Can be customized
Large span
Fast construction speed
Energy saving
