Product Details
Place of Origin: China
Brand Name: EVERCROSS
Certification: CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc
Model Number: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: 1000USD ~ 2000USD Per ton
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product NamProtective Nets And Fencese: |
High Strength Bolts |
Steel Grade: |
S355/ S235/S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460 |
Finish: |
Hot Galvanizing |
Bolts: |
ISO898,AS/NZS1252,BS3692 Or Equivalent |
Thread Length: |
1.00"-2.25" |
Application: |
Machinery, Chemical Industry, Environmental, Building, Bridge |
Product NamProtective Nets And Fencese: |
High Strength Bolts |
Steel Grade: |
S355/ S235/S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460 |
Finish: |
Hot Galvanizing |
Bolts: |
ISO898,AS/NZS1252,BS3692 Or Equivalent |
Thread Length: |
1.00"-2.25" |
Application: |
Machinery, Chemical Industry, Environmental, Building, Bridge |

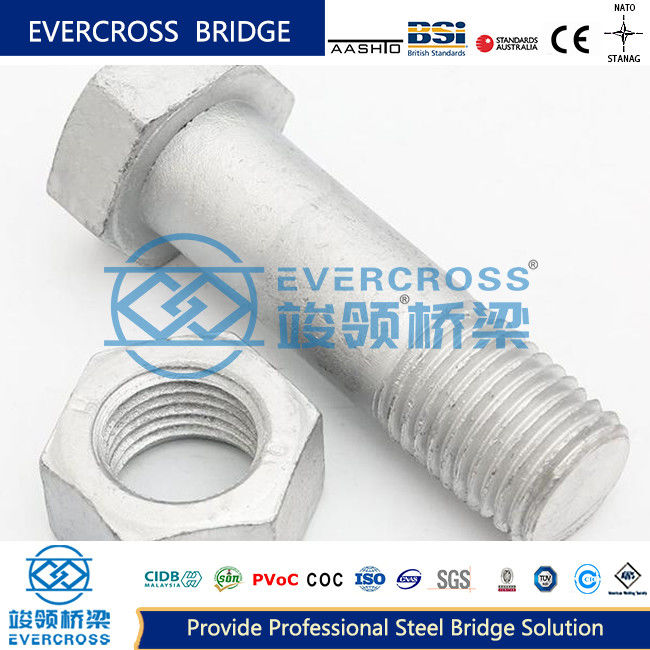

Introduction of High strength bolts:
High strength bolts are made of high strength materials. The screw, nut and washer of the high-strength bolt are made of high-strength steel.
High strength bolts transmit external forces by applying pretension and friction.
High strength bolts are generally used for permanent connections.
High-strength bolt connection has the advantages of simple construction, good mechanical performance, disassembly, fatigue resistance, and no loosening under dynamic load, so it is a promising connection method.
| Class 8.8 high strength bolt construction torque value reference table | ||||||||
| S.Q | Bolt specification | Bolt performance class | Standard value of construction pre-tension (KN) | Torque coefficient (standard deviation less than or equal to 0.010) | Initial torque (N*m) | Final torque (N*m) | Measured torque coefficient | Final torque (N*m) |
| 1 | M16 | 8.8s | 75 | 0.11~0.15 | 78 | 132~180 | 0.121 | 145 |
| 2 | M20 | 8.8s | 120 | 0.11~0.15 | 156 | 264~360 | 0.123 | 295 |
| 3 | M22 | 8.8s | 150 | 0.11~0.15 | 215 | 363~495 | 0.125 | 413 |
| 4 | M24 | 8.8s | 170 | 0.11~0.15 | 265 | 448.8~612 | 0.125 | 510 |
| 5 | M27 | 8.8s | 225 | 0.11~0.15 | 395 | 668.3~911.3 | 0.125 | 759 |
| 6 | M30 | 8.8s | 275 | 0.11~0.15 | 536 | 907.5~1237.5 | 0.125 | 1031 |
| Class 10.9 high strength bolt construction torque value reference table | ||||||||
| S.Q | Bolt specification | Bolt performance class | Standard value of construction pre-tension (KN) | Torque coefficient (standard deviation less than or equal to 0.010) | Initial torque (N*m) | Final torque (N*m) | Measured torque coefficient | Final torque (N*m) |
| 1 | M16 | 10.9s | 110 | 0.11~0.15 | 114 | 193.6~264 | 0.122 | 215 |
| 2 | M20 | 10.9s | 170 | 0.11~0.15 | 221 | 374~510 | 0.12 | 408 |
| 3 | M22 | 10.9s | 210 | 0.11~0.15 | 300 | 508.2~693 | 0.126 | 582 |
| 4 | M24 | 10.9s | 250 | 0.11~0.15 | 390 | 660~900 | 0.125 | 750 |
| 5 | M27 | 10.9s | 320 | 0.11~0.15 | 562 | 950.4~1296 | 0.125 | 1080 |
| 6 | M30 | 10.9s | 390 | 0.11~0.15 | 761 | 1287~1755 | 0.125 | 1463 |
Evercross Steel Bridges Overview :
| EVERCROSS STEEL BRIDGE SPECIFICATION | ||
| EVERCROSS STEEL BRIDGE |
Bailey bridge(Compact-200, Compact-100, LSB, PB100, China-321,BSB) Modular bridge( GWD, Delta, 450-type,etc), Truss Bridge,Warren bridge, Arch bridge, Plate bridge,Beam bridge,Box girder bridge, Suspension bridge,Cable-stayed bridge, Floating bridge,etc |
|
| DESIGN SPANS | 10M TO 300M Single span | |
| CARRIAGE WAY | SINGLE LANE, DOUBLE LANES,MULTILANE,WALKWAY,ETC | |
| LOADING CAPACITY | AASHTO HL93.HS15-44,HS20-44,HS25-44, BS5400 HA+20HB,HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110. Truck-60T,Trailer-80/100Ton,etc |
|
| STEEL GRADE | EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C,etc |
|
| CERTIFICATES | ISO9001, ISO14001,ISO45001,EN1090,CIDB,COC,PVOC,SONCAP,etc | |
| WELDING | AWS D1.1/AWS D1.5 AS/NZS 1554 or equivalent |
|
| BOLTS | ISO898,AS/NZS1252,BS3692 or equivalent | |
| GALVANIZATION CODE | ISO1461 AS/NZS 4680 ASTM-A123, BS1706 or equivalent |
|
