Product Details
Place of Origin: China
Brand Name: EVERCROSS
Certification: CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc
Model Number: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: 1000USD ~ 2000USD Per ton
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product NamProtective Nets And Fencese: |
Protective Nets And Fences |
Steel Grade: |
S355/ S235/S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460 |
Feature: |
Easily Assembled, Sustainable, Eco Friendly |
Welding Standard: |
Aws D1.1/Aws D1.5/AS/NZS 1554 Or Equivalent |
Application: |
Highway, Industry, Garden, Etc. |
Surface Painted: |
Galvanized, PVC Coated, Powder Coated |
Bolts: |
ISO898,AS/NZS1252,BS3692 Or Equivalent |
Product NamProtective Nets And Fencese: |
Protective Nets And Fences |
Steel Grade: |
S355/ S235/S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460 |
Feature: |
Easily Assembled, Sustainable, Eco Friendly |
Welding Standard: |
Aws D1.1/Aws D1.5/AS/NZS 1554 Or Equivalent |
Application: |
Highway, Industry, Garden, Etc. |
Surface Painted: |
Galvanized, PVC Coated, Powder Coated |
Bolts: |
ISO898,AS/NZS1252,BS3692 Or Equivalent |

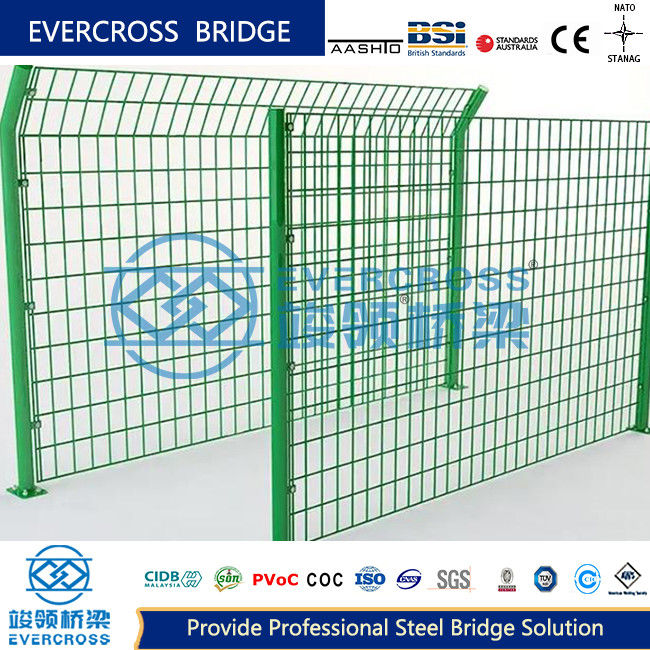

Introduction of Protective nets and fences:
Protective nets and fences are important safety features used in various applications to provide physical barriers and prevent objects or people from entering or exiting a designated area.
Protective nets and fences can be divided into two kinds according to the production characteristics. One is electric welded mesh guardrail, and the other is hook mesh guardrail.
The product is beautiful and durable, no deformation, fast installation, is a more ideal metal guardrail products. It has the characteristics of anti-corrosion, anti-aging, anti-sun, weather and so on. It can be made into a permanent wall, but also can be used as a temporary isolation net, just use a different column fixed way can be achieved.
Peculiarity of Protective Nets And Fences
Stable structure: The protective net is made of high-strength material, strong structure, and can withstand the impact of larger installation external force. At the same time, the protective mesh technology is also very rigorous to ensure that it is stable and reliable.
Beautiful and generous: the design of the protective net pays attention to the combination of beauty and practicality, which is in line with the image of the city and can be coordinated with the surrounding environment. The surface treatment process of the protective mesh can also improve its beauty, such as spraying, galvanized and so on.
Protective nets and fences are essential safety features that help create physical barriers, prevent undesirable access or interactions, and enhance the overall safety and security of the protected environment.
Application of Protective Nets And Fences
Highway fence mesh: mainly used in parks, zoo fences, campuses, field boundaries, road traffic isolation, temporary isolation.
Product form of Protective Nets and Fences
(1) The highway middle guardrail is a guardrail network located in the center of the road, which is mainly used to separate the ascending and descending sequence of vehicles. Prevent vehicles from breaking into the reverse road, and prevent non-motor vehicles and pedestrians from crossing and diagramming the road, so as to ensure good traffic order and prevent accidents. This guardrail is mostly made of cement, metal or cement, metal and made of pier or column.
(2) Isolation barrier
The guardrail network between the motor vehicle lane and the non-motor vehicle lane located on one or both sides of the road is mainly used to separate non-motor vehicles from motor vehicles. It plays the role of each doing its own thing, not interfering with each other, and driving in sequence. This guardrail is mostly made of cement or metal materials, and the height is about 600 mm.
(3) The pedestrian guardrail is located on the outside of the sidewalk at the intersection or the highway guardrail network between the sidewalk and the roadway. It is mainly used to prevent pedestrians from slant through and cross at any Angle in the intersection and on the carriageway, followed by preventing cars from breaking into the sidewalk to avoid obstacles. It plays the role of making the traffic order good and guaranteeing the safety of pedestrians.
Protective Fences:
Protective fences are physical barriers, often made of materials like metal, wire, or concrete, used to restrict access, contain items, or provide security. Some common applications of protective fences include:
Perimeter Security: Fences installed around the perimeter of a property, facility, or restricted area to control and monitor access.
Crowd Control: Fences used to manage the flow of people and prevent overcrowding or unauthorized access in public events, protests, or gatherings.
Animal Containment: Fences used to keep animals, such as livestock or wildlife, within a designated area and prevent them from escaping or entering.
Hazard Isolation: Fences used to isolate and restrict access to areas with potential hazards, such as construction sites, industrial facilities, or areas with dangerous equipment.
Specifications | ||
Product Name | Sidewalk Fence | Highway fence mesh |
Function | Safety protection,Isolation area,Guide the line of sight | |
Feature | Stable structure,Beautiful and generous,Environmental protection and energy saving,High durability |
Electric welded mesh guardrail:Corrosion resistant, beautiful, and effective protection Hook mesh guardrail:Strong impact resistance, beautiful appearance, corrosion resistance, good protection and so on |
Mesh Opening | 50x100mm/50x150mm/50x200mm/55x200mm/75x150mm | |
Wire Diameter | 3.0/3.5/4/4.5/5.0mm | |
Panel Height | 0.6m-3.0m ( Suggest size : 2m/2.4m/3m ) | |
Panel Width | 2.0m-3.0m ( Suggest size : 2m/2.5m/2.9m ) | |
Post Type | Round Post : 48x1.5/2.0mm 60x1.5/2.0mm | |
Square Post(SHS) : 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm | ||
Rectangular Post(RHS) : 40x60x1.5/2.0mm 40x80x1.5/2.0mm | ||
60x80x1.5/2.0mm 80x100x1.5/2.0mm | ||
Surface Treatment | Hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating | |
Color | RAL 6005 green, RAL 7016 gray, All RAL color can be customized |
The specific features of protective nets and fences are tailored to the particular application, environmental conditions, and the level of protection or security required in each situation.
Evercross Steel Bridges Overview :
EVERCROSS STEEL BRIDGE SPECIFICATION | ||
EVERCROSS STEEL BRIDGE |
Bailey bridge(Compact-200, Compact-100, LSB, PB100, China-321,BSB) Modular bridge( GWD, Delta, 450-type,etc), Truss Bridge,Warren bridge, Arch bridge, Plate bridge,Beam bridge,Box girder bridge, Suspension bridge,Cable-stayed bridge, Floating bridge,etc |
|
DESIGN SPANS | 10M TO 300M Single span | |
CARRIAGE WAY | SINGLE LANE, DOUBLE LANES,MULTILANE,WALKWAY,ETC | |
LOADING CAPACITY | AASHTO HL93.HS15-44,HS20-44,HS25-44, BS5400 HA+20HB,HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110. Truck-60T,Trailer-80/100Ton,etc |
|
STEEL GRADE | EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C,etc |
|
CERTIFICATES | ISO9001, ISO14001,ISO45001,EN1090,CIDB,COC,PVOC,SONCAP,etc | |
WELDING | AWS D1.1/AWS D1.5 AS/NZS 1554 or equivalent |
|
BOLTS | ISO898,AS/NZS1252,BS3692 or equivalent | |
GALVANIZATION CODE | ISO1461 AS/NZS 4680 ASTM-A123, BS1706 or equivalent |
