Product Details
Place of Origin: China
Brand Name: EVERCROSS
Certification: CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc
Model Number: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: 1000USD ~ 2000USD Per ton
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product NamProtective Nets And Fencese: |
High Strength Bolts |
Steel Grade: |
S355/ S235/S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460 |
Finish: |
Hot Galvanizing |
Bolts: |
ISO898,AS/NZS1252,BS3692 Or Equivalent |
Thread Length: |
1.00"-2.25" |
Application: |
Machinery, Chemical Industry, Environmental, Building, Bridge |
Product NamProtective Nets And Fencese: |
High Strength Bolts |
Steel Grade: |
S355/ S235/S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460 |
Finish: |
Hot Galvanizing |
Bolts: |
ISO898,AS/NZS1252,BS3692 Or Equivalent |
Thread Length: |
1.00"-2.25" |
Application: |
Machinery, Chemical Industry, Environmental, Building, Bridge |

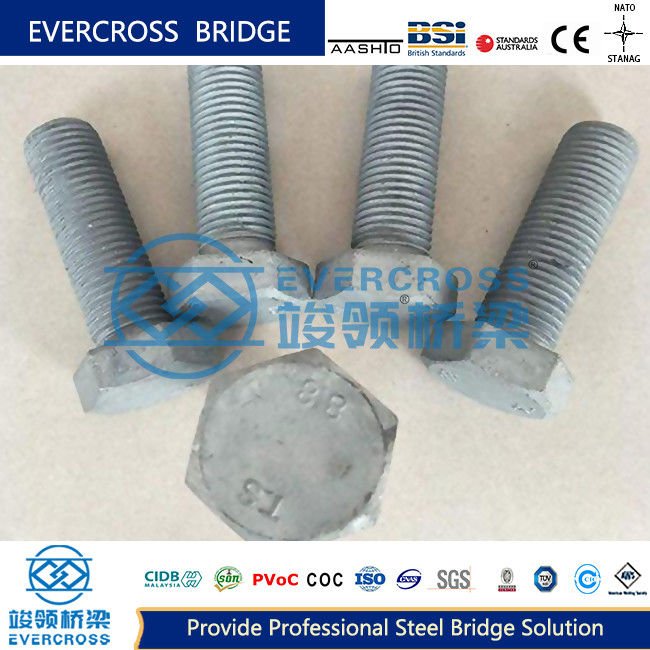

Introduction of High strength bolts:
High strength bolts are made of high strength materials. The screw, nut and washer of the high-strength bolt are made of high-strength steel.
High-strength bolts are a type of fastener commonly used in the construction of steel structures, such as bridges, buildings, and industrial facilities. These bolts are designed to provide a strong, reliable connection between structural steel members, ensuring the overall stability and integrity of the structure.
Applications of high-strength bolts:
Structural Steel Framing:
High-strength bolts are extensively used to connect steel beams, columns, and other structural members in the construction of steel-framed buildings, bridges, and industrial facilities.
Bridge Construction:
High-strength bolts are critical components in the construction and repair of bridges, where they are used to connect the various steel elements of the bridge superstructure and substructure.
They provide the necessary strength and rigidity to the structural connections, ensuring the overall stability and load-bearing capacity of the building or structure.
Transmission Towers and Utility Structures:
High-strength bolts are utilized in the construction and maintenance of transmission towers, telecommunication towers, and other utility structures that support power lines, antennas, and other critical infrastructure.
The high strength and corrosion resistance of these bolts are essential for maintaining the structural integrity of these structures in various environmental conditions.
Heavy Equipment and Machinery:
High-strength bolts are used to assemble and connect components in the manufacturing and maintenance of heavy equipment, such as cranes, mining machinery, and construction vehicles.
| Class 8.8 high strength bolt construction torque value reference table | ||||||||
| S.Q | Bolt specification | Bolt performance class | Standard value of construction pre-tension (KN) | Torque coefficient (standard deviation less than or equal to 0.010) | Initial torque (N*m) | Final torque (N*m) | Measured torque coefficient | Final torque (N*m) |
| 1 | M16 | 8.8s | 75 | 0.11~0.15 | 78 | 132~180 | 0.121 | 145 |
| 2 | M20 | 8.8s | 120 | 0.11~0.15 | 156 | 264~360 | 0.123 | 295 |
| 3 | M22 | 8.8s | 150 | 0.11~0.15 | 215 | 363~495 | 0.125 | 413 |
| 4 | M24 | 8.8s | 170 | 0.11~0.15 | 265 | 448.8~612 | 0.125 | 510 |
| 5 | M27 | 8.8s | 225 | 0.11~0.15 | 395 | 668.3~911.3 | 0.125 | 759 |
| 6 | M30 | 8.8s | 275 | 0.11~0.15 | 536 | 907.5~1237.5 | 0.125 | 1031 |
High strength bolts transmit external forces by applying pretension and friction.
High strength bolts are generally used for permanent connections.
| Class 10.9 high strength bolt construction torque value reference table | ||||||||
| S.Q | Bolt specification | Bolt performance class | Standard value of construction pre-tension (KN) | Torque coefficient (standard deviation less than or equal to 0.010) | Initial torque (N*m) | Final torque (N*m) | Measured torque coefficient | Final torque (N*m) |
| 1 | M16 | 10.9s | 110 | 0.11~0.15 | 114 | 193.6~264 | 0.122 | 215 |
| 2 | M20 | 10.9s | 170 | 0.11~0.15 | 221 | 374~510 | 0.12 | 408 |
| 3 | M22 | 10.9s | 210 | 0.11~0.15 | 300 | 508.2~693 | 0.126 | 582 |
| 4 | M24 | 10.9s | 250 | 0.11~0.15 | 390 | 660~900 | 0.125 | 750 |
| 5 | M27 | 10.9s | 320 | 0.11~0.15 | 562 | 950.4~1296 | 0.125 | 1080 |
| 6 | M30 | 10.9s | 390 | 0.11~0.15 | 761 | 1287~1755 | 0.125 | 1463 |
Specialized Applications of high-strength bolts:
High-strength bolts may also find applications in specialized engineering projects, such as offshore platforms, marine structures, and seismic retrofitting of existing buildings.
The widespread use of high-strength bolts in steel construction and engineering projects is a testament to their reliability, durability, and ability to meet the demanding structural requirements of various industries.
Their ability to withstand high loads and dynamic stresses makes them suitable for these types of challenging environments and applications.
Evercross Steel Bridges Overview :
| EVERCROSS STEEL BRIDGE SPECIFICATION | ||
| EVERCROSS STEEL BRIDGE |
Bailey bridge(Compact-200, Compact-100, LSB, PB100, China-321,BSB) Modular bridge( GWD, Delta, 450-type,etc), Truss Bridge,Warren bridge, Arch bridge, Plate bridge,Beam bridge,Box girder bridge, Suspension bridge,Cable-stayed bridge, Floating bridge,etc |
|
| DESIGN SPANS | 10M TO 300M Single span | |
| CARRIAGE WAY | SINGLE LANE, DOUBLE LANES,MULTILANE,WALKWAY,ETC | |
| LOADING CAPACITY | AASHTO HL93.HS15-44,HS20-44,HS25-44, BS5400 HA+20HB,HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110. Truck-60T,Trailer-80/100Ton,etc |
|
| STEEL GRADE | EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C,etc |
|
| CERTIFICATES | ISO9001, ISO14001,ISO45001,EN1090,CIDB,COC,PVOC,SONCAP,etc | |
| WELDING | AWS D1.1/AWS D1.5 AS/NZS 1554 or equivalent |
|
| BOLTS | ISO898,AS/NZS1252,BS3692 or equivalent | |
| GALVANIZATION CODE | ISO1461 AS/NZS 4680 ASTM-A123, BS1706 or equivalent |
|
