Truss Bridges Structural Steel Fabricated Heavy Steel Frame Bridges

Introduction of the steel structure:

Steel structures, such as those used in buildings, bridges, and industrial facilities, undergo a series of processing steps to transform raw steel materials into the final assembled components.


Surface Preparation and Coatings:

The assembled steel structure undergoes surface preparation, such as cleaning, degreasing, and shot blasting, to remove any contaminants or rust.

Protective coatings, such as paints, galvanization, or specialized fireproof coatings, may be applied to the steel surface to enhance corrosion resistance, fire protection, and aesthetic appeal.

Fabrication:

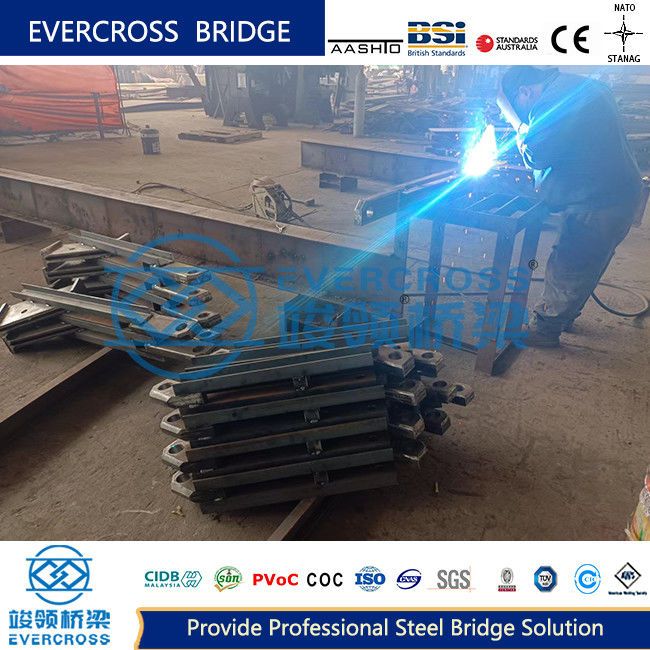

The steel components are cut, shaped, and prepared for assembly using processes like sawing, drilling, punching, and welding.

Specialized machinery and equipment, such as CNC (Computer Numerical Control) machines, are often used to ensure precision and efficiency.

The processing of steel structures involves a comprehensive and specialized set of techniques to ensure the structural integrity, safety, and long-term performance of the final assembled system. Continuous improvements in technology and best practices are driving advancements in this critical industry.

Advantages of the steel structure:

Large span
Fast construction speed
Energy saving
Beautiful building appearance
Good seismic performance

(1) Main girder


It is the main load-bearing structure and bears vertical loads.

The main truss is composed of upper chord, lower chord and belly rod. The belly bar is divided into diagonal bar and vertical bar.

Nodes are divided into large nodes and small nodes.

Pitch refers to the distance between nodes.

(2) Bracing

1. Classification: longitudinal connection and horizontal connection.
2. Function: Connect the main truss, make the bridge span structure become a stable space structure that can withstand a variety of lateral loads.
3. The longitudinal connection system is divided into upper horizontal longitudinal connection system and lower horizontal longitudinal connection system. The main function is to withstand the transverse horizontal load, transverse wind, lateral rocking force and centrifugal force acting on the bridge span structure. In addition, the transverse support chord, reducing its free length outside the plane.
4. The transverse connection is divided into bridge frame and crosslink. The main function is to increase the torsional stiffness of steel girder. Properly adjust the uneven force of the two main stringer or two longitudinal links.

(3) Bridge deck system

1. Composition: the longitudinal beam, beam and the connection between the longitudinal beam.

2. Way of force transmission: the load first acts on the longitudinal beam, and then from the longitudinal beam to the beam, and then from the beam to the main truss.

(4) Bridge deck

The bridge deck is the part for vehicles and pedestrians to walk on. The form of the deck is similar to that of steel beam Bridges and combined beam bridges.


Key Considerations in Steel Structure Processing:

Compliance with building codes and safety standards

Minimizing waste and optimizing resource utilization

Efficient logistics and supply chain management

Evercross Steel Bridges Overview :

Application of the steel structure:

Highway and Road Bridges: Steel truss bridges are frequently used in the construction of highway and road bridges. They are suitable for a wide range of span lengths, from short to long, making them versatile for accommodating different road widths and crossing various terrains.
