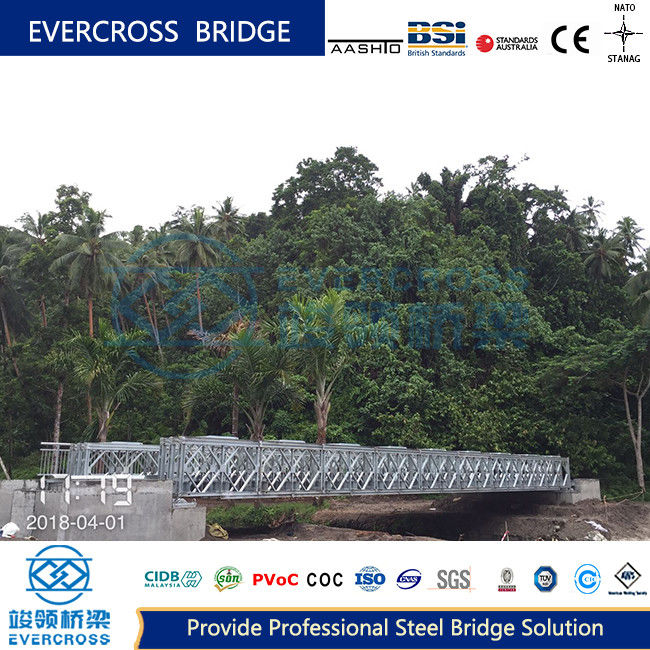

China Military Prefabricated Compact Bailey Bridge Q355B / Q235B Universal Manufacturer

China Q355b/Q235B Universal Bailey Bridge Manufacturer Prefabricated Bridge

Bailey Bridges Description:

Bailey bridge is a fabricated steel bridge, which is characterized by light components, convenient disassembly and strong adaptability, and can be built quickly with simple tools and manpower.The early Compact-100 Bailey Bridge was mainly used in the military, that is, military steel bridge. Now Compact-100 Bailey Bridge has been widely used in rescue and disaster relief, traffic engineering, municipal water conservancy engineering, dangerous bridge reinforcement, etc. in addition to being a war-ready steel bridge.For example, during the 5.12 Wenchuan earthquake in 2008, a large number of Bailey Bridges were used for rescue and disaster relief. Bailey Bridges played a key role in transport of earthquake relief materials, evacuation of the wounded and evacuation of the masses.

Bailey Bridges Specifications:

Bailey Bridges Application

1. Military Operations
Temporary Crossings: Used by armed forces to establish quick access over rivers or obstacles during operations.
Logistics Support: Facilitates the movement of troops and equipment in combat zones.
2. Disaster Relief
Emergency Access: Deployed in areas affected by natural disasters (e.g., floods, earthquakes) to restore transportation links.
Humanitarian Aid: Provides routes for delivering supplies and aid to affected populations.
3. Civil Engineering Projects
Construction Sites: Used as temporary bridges during the construction of permanent structures, allowing for the movement of heavy machinery and materials.

Bailey Bridges Competitive Advantage:

1. Rapid Deployment
Quick Assembly: Can be assembled in a short time, making it ideal for emergency situations and military operations.
2. Portability
Easy Transportation: Modular design allows for easy disassembly and transport to remote or difficult-to-access locations.
3. Cost-Effectiveness
Lower Construction Costs: Reduces labor and material costs compared to traditional bridge construction methods.
4. Flexibility
Various Configurations: Can be modified to accommodate different spans and load requirements, adaptable to various applications.

Compact-200 Bailey bridge Truss Allowable Internal Force Table(Half-bridge)

Evercross Steel Bridges Overview:

Mixture form to erect all kinds of Bailey Bridges

Temporary Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span can be erected.
The bridge has the advantages of few components, light weight and low cost.
Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in, and the bridge is strong enough to carry. It is considered a great example of military engineering.

Bailey Bridges Advantage

Heavy loading capacity

Convenient transport, speedy erection
Easy disassembling
Great stability and long fatigue life
Possessing the features of simple structure
