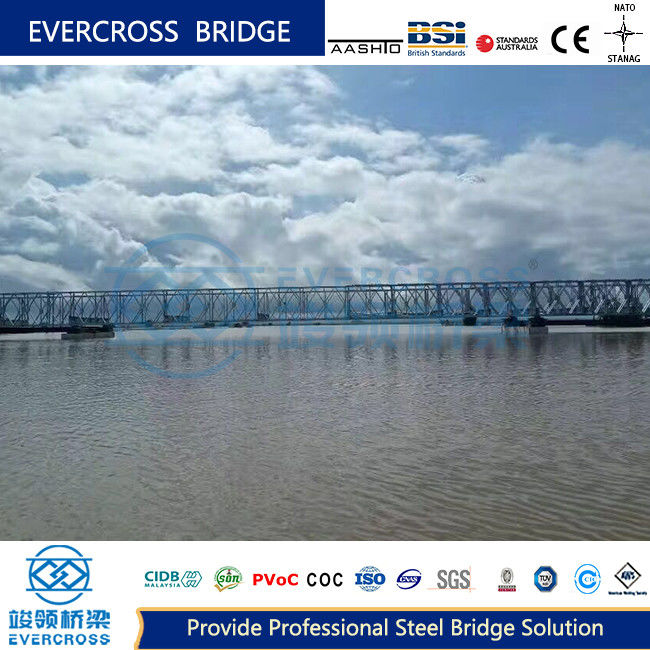

Fabricated Steel Bailey Truss Bridge Convenient Disassembly

Bailey Bridge Good Corrosion Resistance Modular Design Stainless Steel Bridge

Bailey Bridges Description:

Bailey bridge is a fabricated steel bridge, which is characterized by light components, convenient disassembly and strong adaptability, and can be built quickly with simple tools and manpower.The early Compact-100 Bailey Bridge was mainly used in the military, that is, military steel bridge. Now Compact-100 Bailey Bridge has been widely used in rescue and disaster relief, traffic engineering, municipal water conservancy engineering, dangerous bridge reinforcement, etc. in addition to being a war-ready steel bridge.For example, during the 5.12 Wenchuan earthquake in 2008, a large number of Bailey Bridges were used for rescue and disaster relief. Bailey Bridges played a key role in transport of earthquake relief materials, evacuation of the wounded and evacuation of the masses.

Introduction of Bailey Bridges

Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world.

Compact-200 Bailey bridge Truss Allowable Internal Force Table(Half-bridge)

Applications of Bailey Bridges

Event Infrastructure:
Used to create temporary access points and crossings for large events, such as festivals or sports events, where crowd movement is a concern.

Mining Operations:
Can be deployed in remote mining sites to facilitate access and transportation of materials.

Rural Accessibility:
Provides access in rural or isolated areas where traditional bridge construction might be impractical or too costly.

Maintaining Traffic Flow:
Used to keep traffic moving while permanent bridges are being constructed or repaired, minimizing disruptions.

Pedestrian Access:
Can be adapted for pedestrian use in parks or urban areas where temporary crossings are needed.
These applications highlight the Bailey bridge's flexibility and effectiveness in meeting diverse engineering and logistical challenges.

Bailey Bridges Competitive Advantage:

Durability:
Weather Resistant: Designed to withstand harsh environmental conditions, with proper maintenance extending service life.

Versatility:
Multiple Applications: Suitable for a range of uses, from temporary field crossings to permanent installations in various environments.

Adaptability to Terrain:
Versatile Installation: Can be deployed in diverse terrains, including remote or challenging locations where other solutions may not be practical.

Ease of Disassembly:
Relocatable: Can be easily taken apart and moved to a different location, making them ideal for temporary needs.

Features of Bailey Bridge

Lightweight Design:
Made from high-strength steel, which reduces the overall weight while maintaining load capacity.

Versatile Span Lengths:
Can be configured to span different lengths, typically from 10 to 60 meters (33 to 200 feet).

Load Capacity:
Designed to support heavy loads, including military vehicles, depending on the specific configuration.

Durability:
Resistant to corrosion and weathering, especially when properly maintained or treated.

Bailey Bridges Specifications:

Bailey Bridges Advantage

High Load Capacity:
Capable of supporting heavy vehicles and equipment, depending on the specific configuration.

Minimal Equipment Needed:
Requires only basic tools for assembly, reducing the need for heavy machinery and specialized labor.

Durability:
Resistant to environmental factors, with proper maintenance extending its lifespan.

Adaptability:
Can be used in diverse environments, including difficult terrains and locations with limited access.

Ease of Disassembly:
Can be easily dismantled and relocated, making them ideal for temporary uses or projects that require flexibility.
