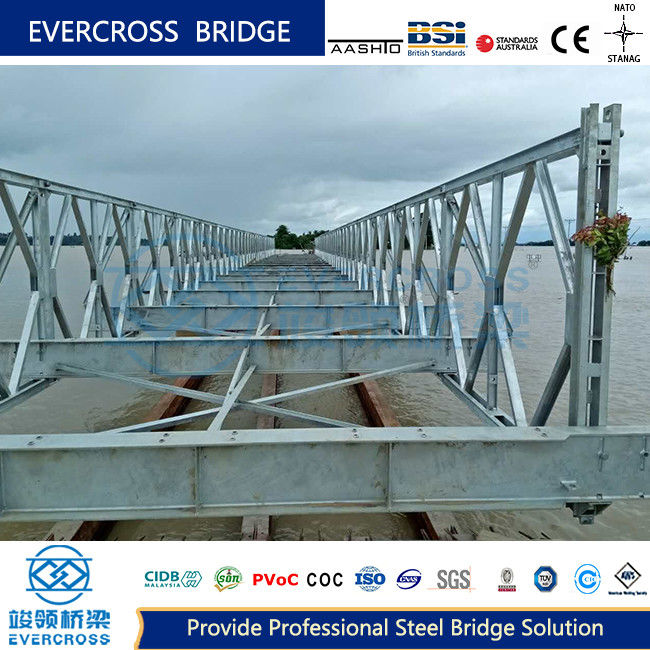

Steel Deck Temporary Bailey Bridge Construction

Bailey Bridge Good Corrosion Resistance Modular Design Stainless Steel Bridge

Bailey Bridges Description:

Bailey bridge is a modular, portable bridge designed for quick assembly and disassembly, ideal for temporary or emergency use. Developed by Sir Donald Bailey during World War II, it consists of prefabricated panels that can be connected with minimal tools and manpower.

Introduction of Bailey Bridges

Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world.

Compact-200 Bailey bridge Truss Allowable Internal Force Table(Half-bridge)

Applications of Bailey Bridges

Military Use: Frequently used in military operations for quick deployment of crossing points.

Disaster Relief: Ideal for emergency situations where infrastructure has been damaged.

Temporary Crossings: Often employed for temporary road or rail crossings during construction projects.

Features of Bailey Bridge

Load Capacity:
Designed to support heavy loads, including military vehicles, depending on the specific configuration.

Lightweight Design:
Made from high-strength steel, which reduces the overall weight while maintaining load capacity.

Versatile Span Lengths:
Can be configured to span different lengths, typically from 10 to 60 meters (33 to 200 feet).

Durability:
Resistant to corrosion and weathering, especially when properly maintained or treated.

Bailey Bridges Competitive Advantage:

Durability:
Weather Resistant: Designed to withstand harsh environmental conditions, with proper maintenance extending service life.

Versatility:
Multiple Applications: Suitable for a range of uses, from temporary field crossings to permanent installations in various environments.

Adaptability to Terrain:
Versatile Installation: Can be deployed in diverse terrains, including remote or challenging locations where other solutions may not be practical.

Ease of Disassembly:
Relocatable: Can be easily taken apart and moved to a different location, making them ideal for temporary needs.

Bailey Bridges Specifications:

Bailey Bridges Advantage

Ease of Disassembly:
Can be easily dismantled and relocated, making them ideal for temporary uses or projects that require flexibility.

Adaptability:
Can be used in diverse environments, including difficult terrains and locations with limited access.

Durability:
Resistant to environmental factors, with proper maintenance extending its lifespan.

Minimal Equipment Needed:
Requires only basic tools for assembly, reducing the need for heavy machinery and specialized labor.



Evercross Steel Bridges Overview:
