Building Construction Garden Protection Fence Sustainable

Product Details

Place of Origin: China

Brand Name: EVERCROSS

Certification: CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Model Number: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc

Payment & Shipping Terms

Minimum Order Quantity: negotiation

Price: 1000USD ~ 2000USD Per ton

Packaging Details: According to detailed order

Delivery Time: negotiation

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

sustainable garden protection fence

,

building construction garden protection fence

,

sustainable protective fences

Product NamProtective Nets And Fencese:
Protective Nets And Fences
Steel Grade:
S355/ S235/S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460
Feature:
Easily Assembled, Sustainable, Eco Friendly
Welding Standard:
Aws D1.1/Aws D1.5/AS/NZS 1554 Or Equivalent
Application:
Highway, Industry, Garden, Etc.
Surface Painted:
Galvanized, PVC Coated, Powder Coated
Bolts:
ISO898,AS/NZS1252,BS3692 Or Equivalent
Product NamProtective Nets And Fencese:
Protective Nets And Fences
Steel Grade:
S355/ S235/S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460
Feature:
Easily Assembled, Sustainable, Eco Friendly
Welding Standard:
Aws D1.1/Aws D1.5/AS/NZS 1554 Or Equivalent
Application:
Highway, Industry, Garden, Etc.
Surface Painted:
Galvanized, PVC Coated, Powder Coated
Bolts:
ISO898,AS/NZS1252,BS3692 Or Equivalent

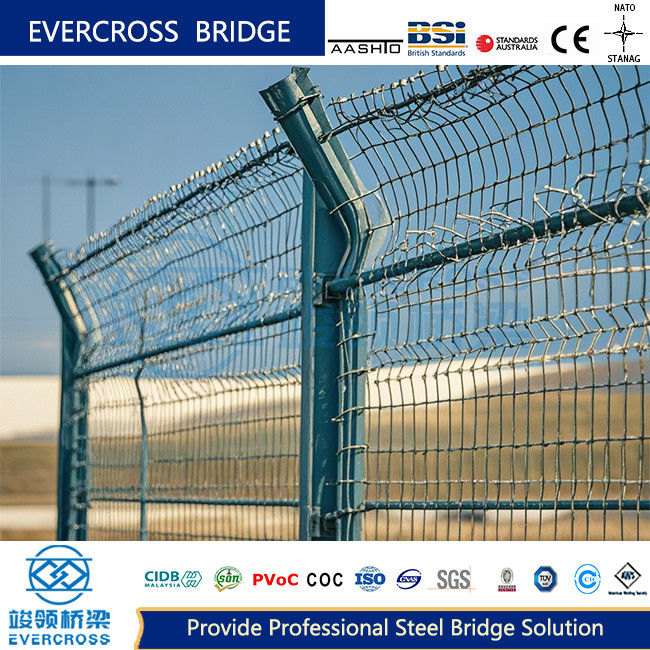

Building Construction Garden Protection Fence Sustainable



Introduction of Protective nets and fences:



Protective nets and fences are important safety features used in various applications to provide physical barriers and prevent objects or people from entering or exiting a designated area.



In addition to galvanized steel, some guardrail nets are made of PVC - coated steel. The PVC coating not only enhances the corrosion - resistance but also gives the net a more attractive appearance. The mesh can come in different shapes and sizes. The most common is the diamond - shaped mesh, which provides good strength and flexibility. The posts that support the mesh are usually made of steel and are firmly installed into the ground, either by using concrete foundations or other anchoring methods.



Protective nets and fences can be divided into two kinds according to the production characteristics. One is electric welded mesh guardrail, and the other is hook mesh guardrail.



Most protective nets are designed for easy installation. They usually come with simple installation instructions and can be quickly set up using basic tools. For example, some safety nets can be attached to frames or structures with hooks and clips.





Specifications
Product Name Sidewalk Fence Highway fence mesh
Function Safety protection,Isolation area,Guide the line of sight
Feature
Stable structure,Beautiful and generous,Environmental protection and energy saving,High durability
Electric welded mesh guardrail:Corrosion resistant, beautiful, and effective protection
Hook mesh guardrail:Strong impact resistance, beautiful appearance, corrosion resistance, good protection and so on
Mesh Opening 50x100mm/50x150mm/50x200mm/55x200mm/75x150mm
Wire Diameter 3.0/3.5/4/4.5/5.0mm
Panel Height 0.6m-3.0m ( Suggest size : 2m/2.4m/3m )
Panel Width 2.0m-3.0m ( Suggest size : 2m/2.5m/2.9m )
Post Type Round Post : 48x1.5/2.0mm 60x1.5/2.0mm
Square Post(SHS) : 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm
Rectangular Post(RHS) : 40x60x1.5/2.0mm 40x80x1.5/2.0mm
60x80x1.5/2.0mm 80x100x1.5/2.0mm
Surface Treatment Hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color RAL 6005 green, RAL 7016 gray, All RAL color can be customized



They are widely used to mark boundaries and prevent unauthorized access. For example, around industrial plants and warehouses, guardrail nets act as a physical barrier to keep out intruders and protect valuable equipment and materials. In residential areas, they can be installed around the perimeter of a property to provide a sense of security and privacy for homeowners.



Evercross Steel Bridges Overview :



EVERCROSS STEEL BRIDGE SPECIFICATION
EVERCROSS
STEEL BRIDGE
Bailey bridge(Compact-200, Compact-100, LSB, PB100, China-321,BSB)
Modular bridge( GWD, Delta, 450-type,etc),
Truss Bridge,Warren bridge,
Arch bridge, Plate bridge,Beam bridge,Box girder bridge,
Suspension bridge,Cable-stayed bridge,
Floating bridge,etc
DESIGN SPANS 10M TO 300M Single span
CARRIAGE WAY SINGLE LANE, DOUBLE LANES,MULTILANE,WALKWAY,ETC
LOADING CAPACITY AASHTO HL93.HS15-44,HS20-44,HS25-44,
BS5400 HA+20HB,HA+30HB,
AS5100 Truck-T44,
IRC 70R Class A/B,
NATO STANAG MLC80/MLC110.
Truck-60T,Trailer-80/100Ton,etc
STEEL GRADE EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C
AS/NZS3678/3679/1163/Grade 350,
ASTM A572/A572M GR50/GR65
GB1591 GB355B/C/D/460C,etc
CERTIFICATES ISO9001, ISO14001,ISO45001,EN1090,CIDB,COC,PVOC,SONCAP,etc
WELDING AWS D1.1/AWS D1.5
AS/NZS 1554 or equivalent
BOLTS ISO898,AS/NZS1252,BS3692 or equivalent
GALVANIZATION CODE ISO1461
AS/NZS 4680
ASTM-A123,
BS1706
or equivalent





Building Construction Garden Protection Fence Sustainable 0



Building Construction Garden Protection Fence Sustainable 1



Product form of Protective Nets and Fences



(1) The highway middle guardrail is a guardrail network located in the center of the road, which is mainly used to separate the ascending and descending sequence of vehicles. Prevent vehicles from breaking into the reverse road, and prevent non-motor vehicles and pedestrians from crossing and diagramming the road, so as to ensure good traffic order and prevent accidents. This guardrail is mostly made of cement, metal or cement, metal and made of pier or column.



(2) Isolation barrier

The guardrail network between the motor vehicle lane and the non-motor vehicle lane located on one or both sides of the road is mainly used to separate non-motor vehicles from motor vehicles. It plays the role of each doing its own thing, not interfering with each other, and driving in sequence. This guardrail is mostly made of cement or metal materials, and the height is about 600 mm.
